Straddle AGM Electric Stacker 1200 kg – ESA121-D
Estimated delivery within 1-2 weeks
3 year battery warranty
EP Store guaranteed local dealer
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | ESA121-MD |
| Drive | Electric |
| Operator type | Pedestrian |
| Load capacity | 1200 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 783 mm |
| Wheelbase | 1235 mm |
| Service weight | 600 kg |
| Axle loading, laden front/rear | 600/1200 kg |
| Axle loading, unladen front/rear | 420/180 kg |
| Tyre type | Polyurethane |
| Tyre size, front | Ø214×70mm |
| Tyre size, rear | Ф102x50mm |
| Additional wheels (castor wheels) | Ø100x50mm |
| Wheels, number front/rear (x=drive wheels) | 1x ，1/4 |
| Tread width, front | 543 mm |
| Tread width, rear | 1070/1146/1222/1298 mm |
| Max lift height | 1920 mm |
| Retracted mast height | 1951 mm |
| Free lift | - mm |
| Lift height | 1530 mm |
| Height, mast extended | 2500 mm |
| Height of tiller handle in drive position min./max. | 760/1140 |
| Height of wheel arms | 100mm |
| Lowered height | 63 |
| Overall length | 1711 mm |
| Length to face of forks | 640 mm |
| Overall width | 1156/1232/1308/1384 mm |
| Fork dimensions | 40/100/1070 mm |
| Fork carriage width | 826 mm |
| Distance between fork-arms | 200~780 |
| Distance between wheel arms/loading surfaces | 991/1067/1143/1219 |
| Ground clearance, laden, below mast | 30 mm |
| Ground clearance, centre of wheelbase | 40 mm |
| Aisle width for pallets 1000×1200 crossways | 2369 Ast |
| Aisle width for pallets 800×1200 lengthways | 2257 Ast |
| Turning radius | 1469 Wa |
| Travel speed, laden/unladen | 4/4.5 km/h |
| Lifting speed, laden/unladen | 0.15/0.25 m/s |
| Lowering speed, laden/unladen | 0.19/0.14 m/s |
| Max. gradeability, laden/unladen | 3/10 % |
| Service brake | Electromagnetic |
| Parking brake | Electromagnetic |
| Drive motor rating S2 60 min | 0.65 kW |
| Lift motor rating at S3 15% | 3.0 kW |
| Battery nominal capacity | 24V/105Ah Ah |
| Battery voltage | 24 V |
| Battery type | Li-Ion/AGM |
| Battery weight | 61 kg |
| Type of drive control | DC |
| Steering design | Mechanical |
| Sound pressure level at the drivers ear | <74 dB(A) |
| Dimensions Chart | https://cdn.ep-portal.net/products/attr_131/1766105999171-qquxs5.webp |
| Rated Capacities | https://cdn.ep-portal.net/products/attr_130/1766105761406-dw46oj.webp |
Josh M.
Sophie T.
Mark R.

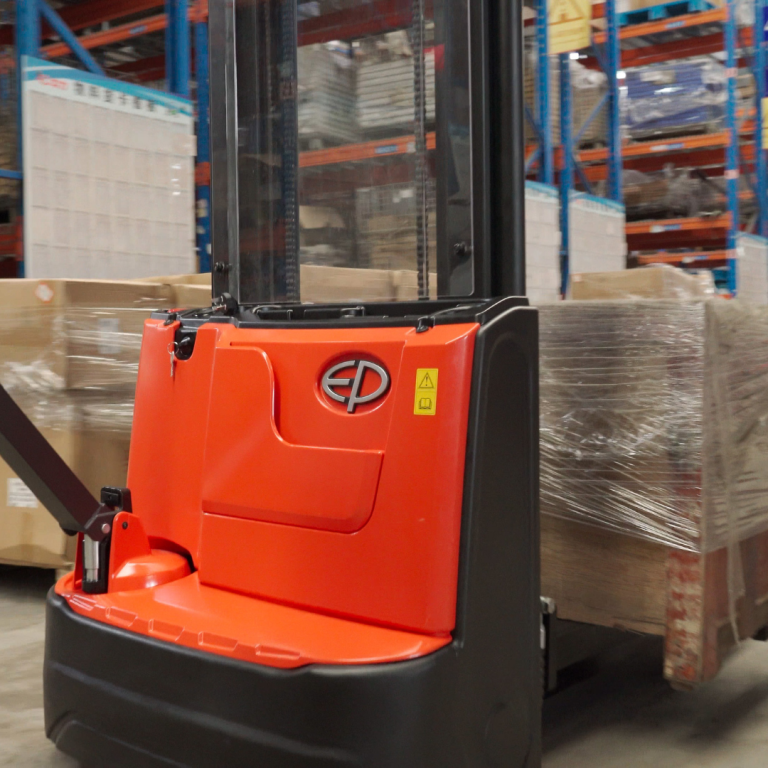

Explore the ESA121-D
Compact Manoeuvrability
Flexible Battery Options
Enhanced Visibility

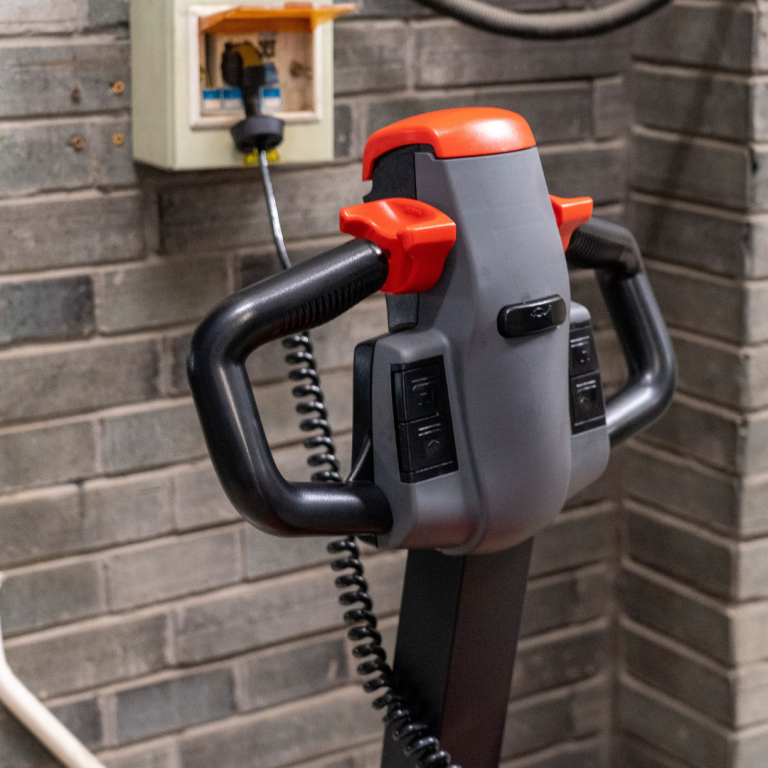

Intuitive Controls
South Australia
We have dealers in this area!
Victoria
We have dealers in this area!
Victoria
We have dealers in this area!
Victoria
We have dealers in this area!
Victoria
We have dealers in this area!
New South Wales
We have dealers in this area!
New South Wales
We have dealers in this area!
New South Wales
We have dealers in this area!
Queensland
We have dealers in this area!
Queensland
We have dealers in this area!
Western Australia
We have dealers in this area!
Our dedicated sales and support network for the ESA121-D
With the support of EP Equipment distributors spread across the UK, you are guaranteed to receive fast assistance, personalised advice and original parts for your ESA121-D.
More and more companies are replacing their old equipment with 100% electric solutions like the ESA121-D, appreciated for their compactness, quiet operation and reduced operating costs.
Choosing the ESA121-D means choosing a sustainable alternative, without compromising on power, versatility and autonomy.
Thanks to our network of partners in the UK, you benefit from:
- Fast delivery of trucks like the ESA121-D
- Qualified and responsive technical support
- Constant availability of original spare parts
FAQs
Which battery option should I choose?
The AGM battery is a reliable, cost-effective choice for standard operations. The Lithium-ion option is better suited for intensive use, offering faster charging, longer lifespan, and the ability to partially recharge without affecting battery health.
Can the ESA121-D handle narrow aisles?
Yes, the compact design and 1,480 mm turning radius make it well suited for narrow aisles and tight spaces where larger equipment would struggle to operate.
What maintenance does the ESA121-D require?
Both battery options are maintenance-free, and the robust construction minimises ongoing servicing requirements. Routine inspections and standard care will keep the stacker running smoothly for years.
